How to install Yealink W53P DECT IP Phone
This tutorial is for London ICT clients who received pre-configured Yealink W53P DECT IP Phone (Plug and Play). If you are not one of our clients, we'll be happy to help you by calling 0330 120 1515 or emailing us at support@londonict.com
Please follow this tutorial step by step.

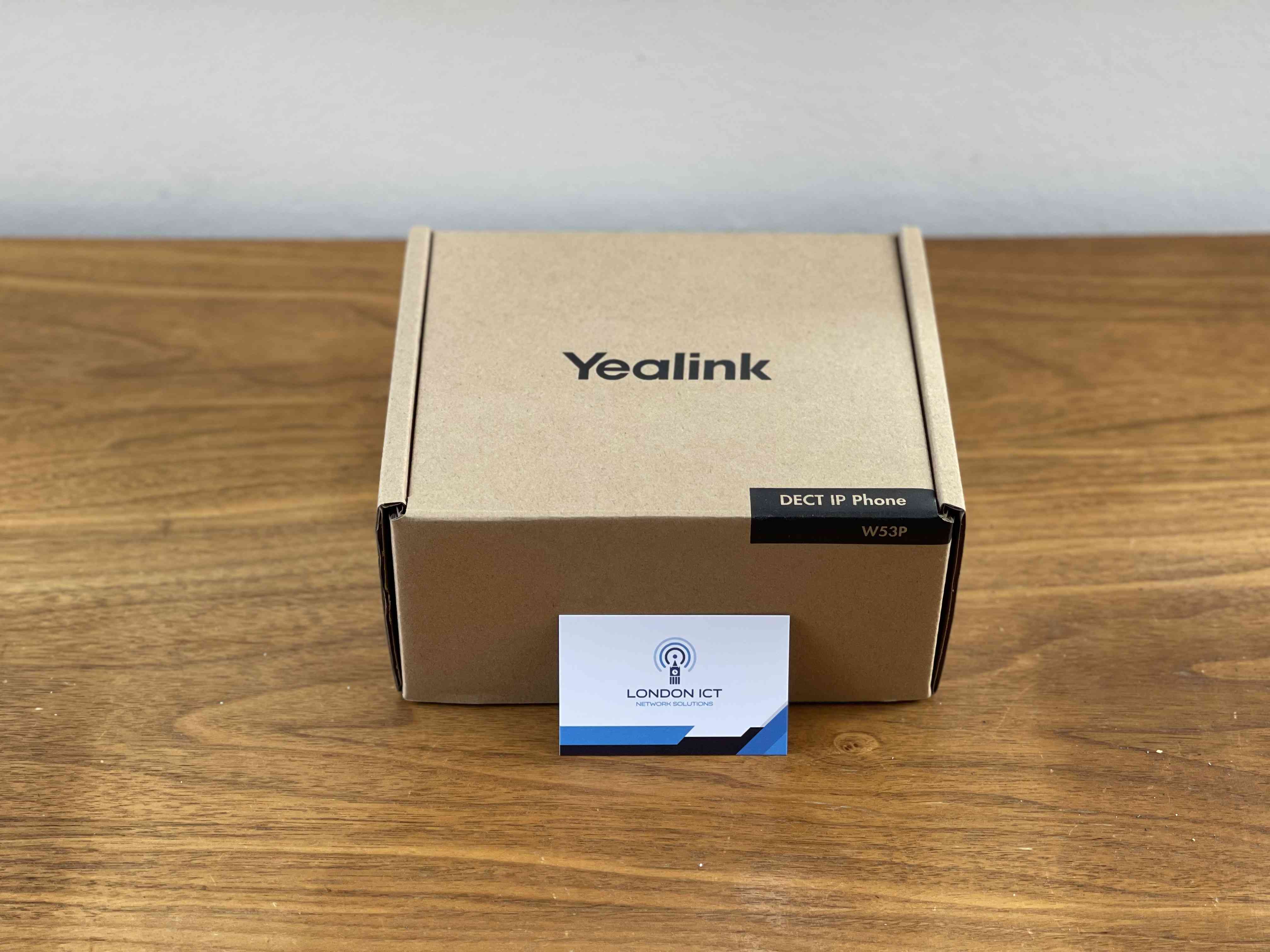

Step 1: Please open the box once you've received the bundled equipment.

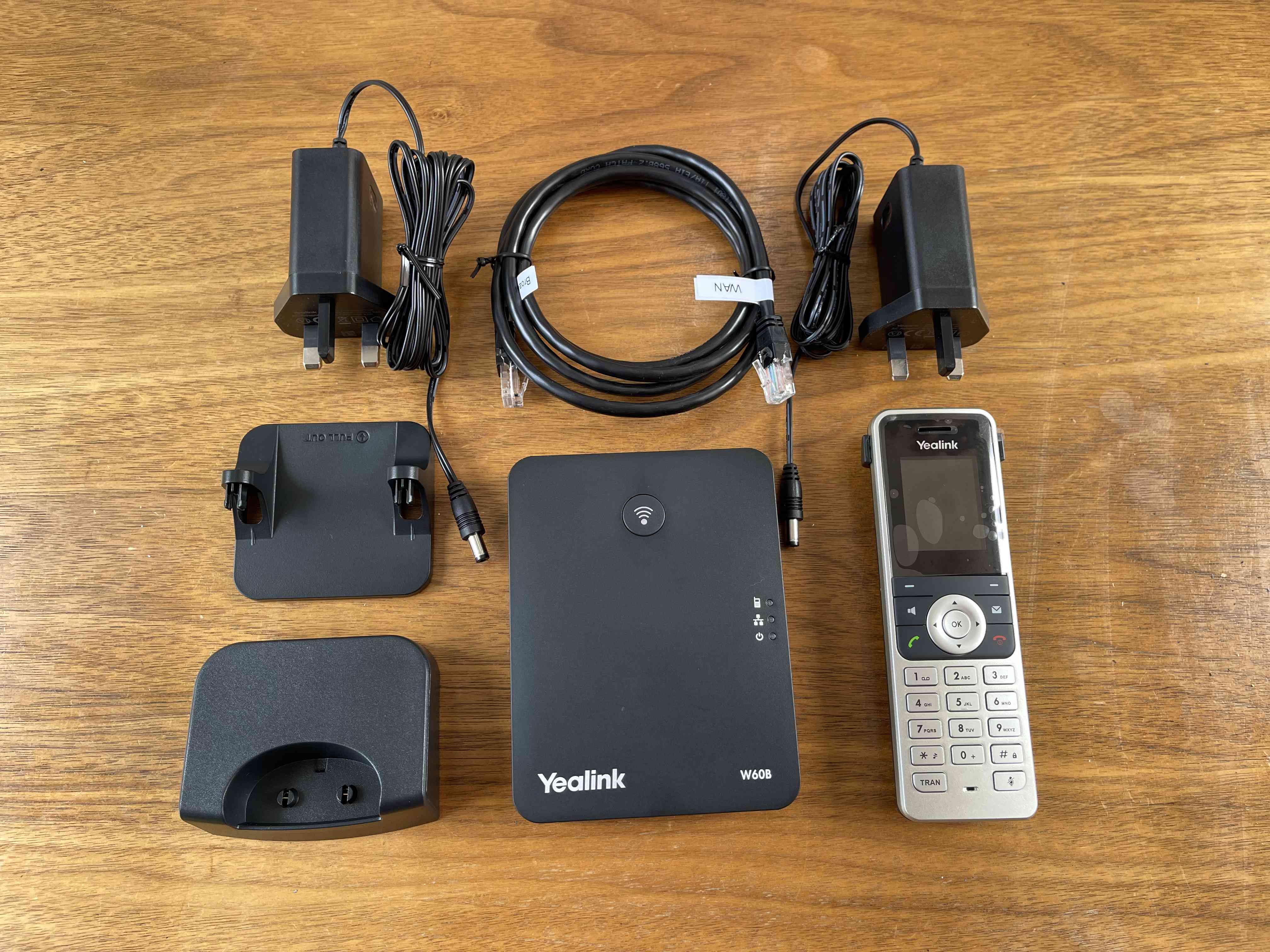

Package Contents:
- 1x W53H Handset
- 1x W60B Base Station
- 1x Base Stand
- 1x Charger Cradle
- 2x Power Adapters
- 1x Ethernet Cable (Black)
- 1x Rechargeable Battery (Pre-installed)
- 1x Battery Cover (Pre-installed)
- 1x Belt Clip (Pre-installed)

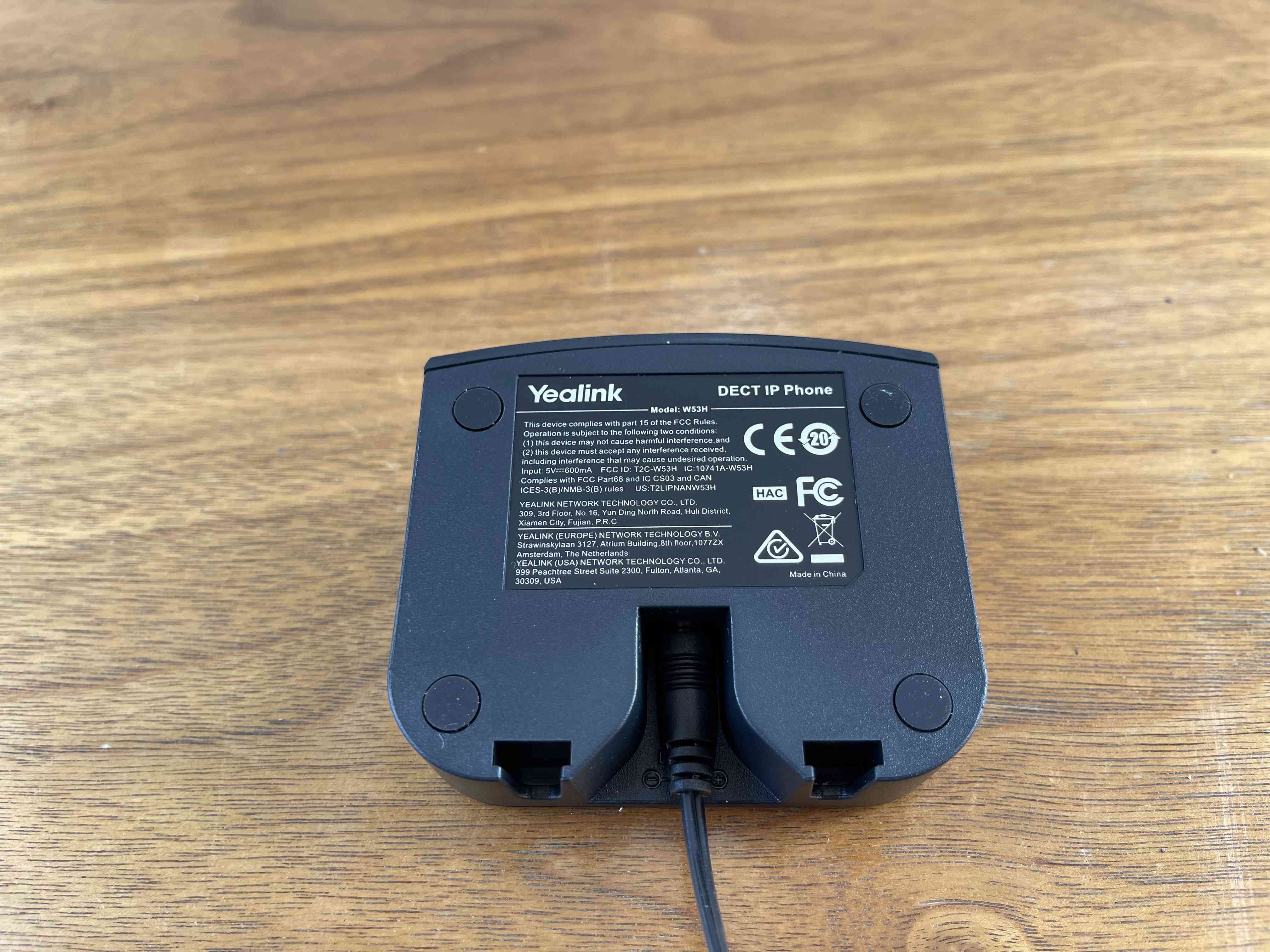

Step 2: Connect a power adapter cable to the charger cradle and plug it into a power socket. You can recharge W53H Handset with this cradle.

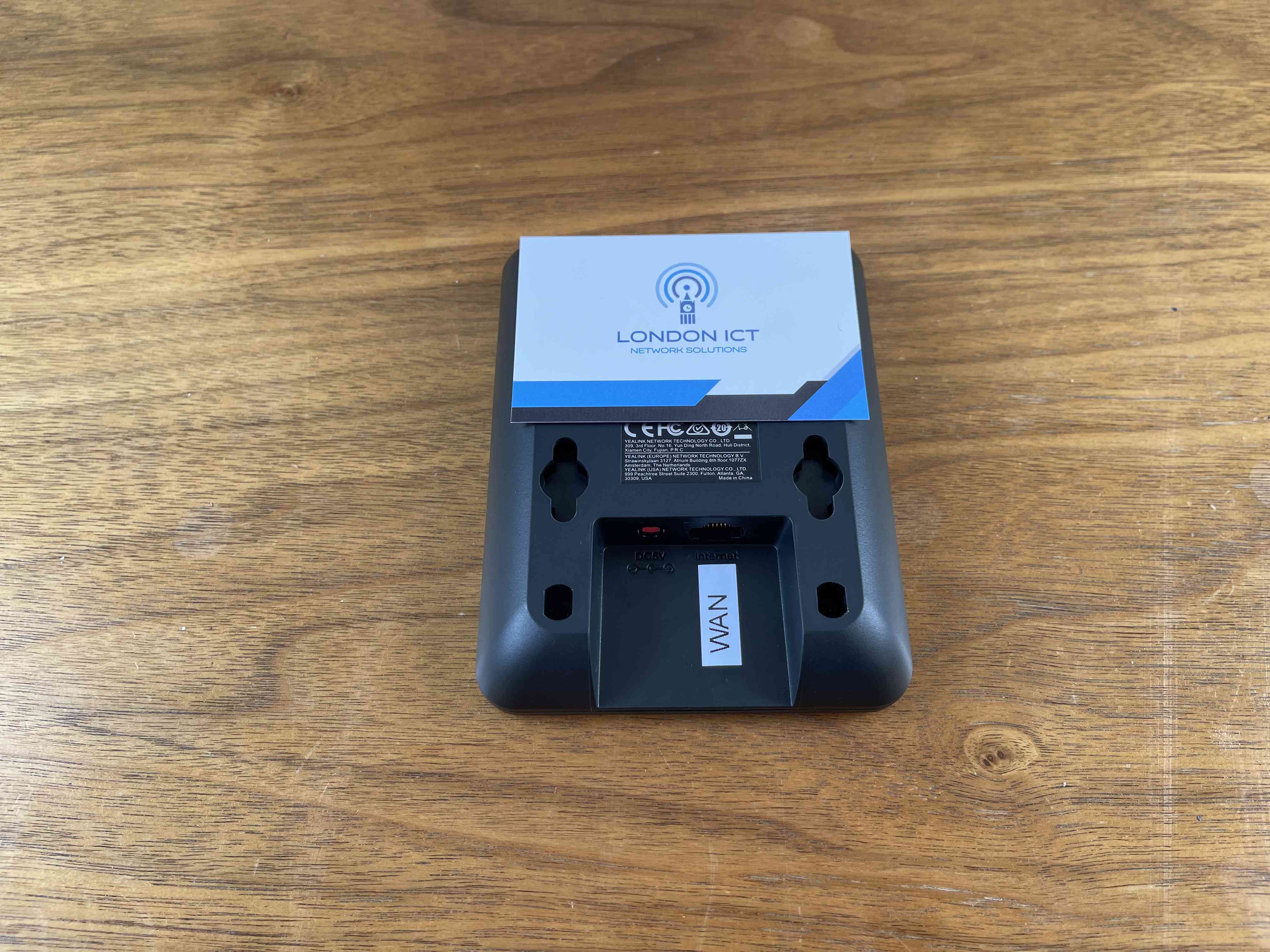

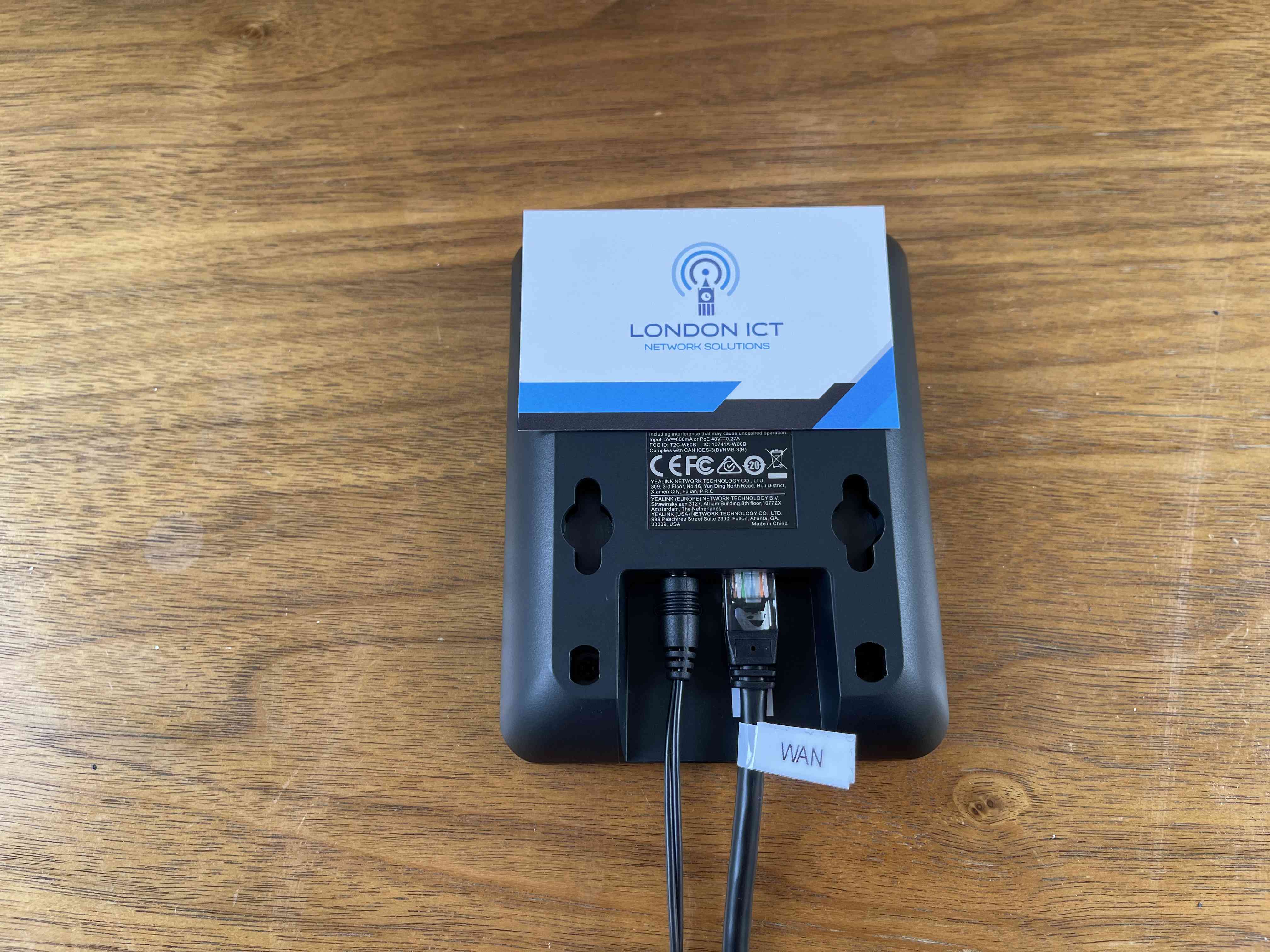

Step 3: Connect the other power adapter cable to the W60B Base Station. Also, connect the ethernet cable (Black) with the label of WAN to the port WAN of the W60B Base Station.
Don't plug the power adapter into a power socket until Step 6.

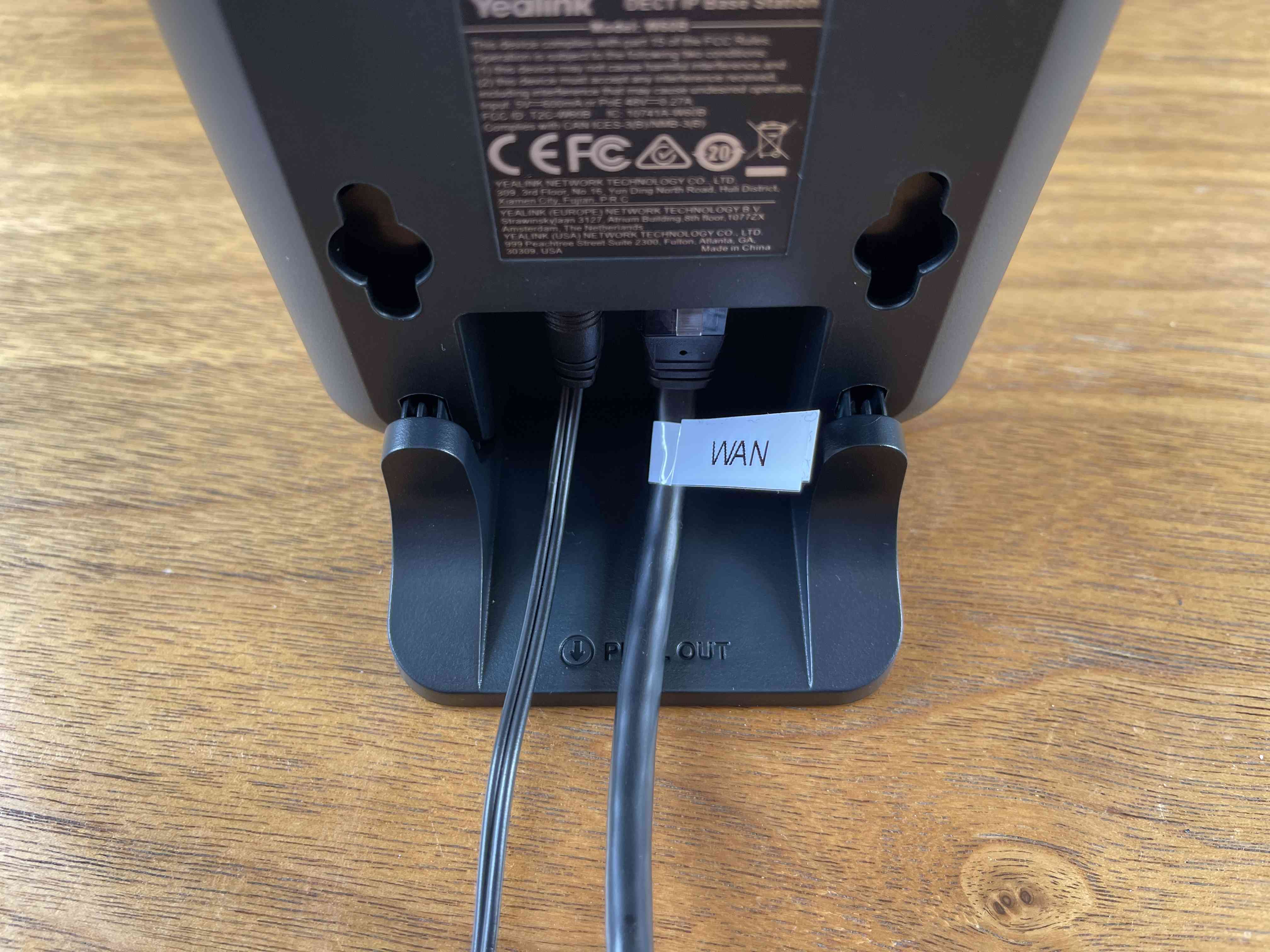

Step 4: Attach the Base Stand to the W60B Base Station.

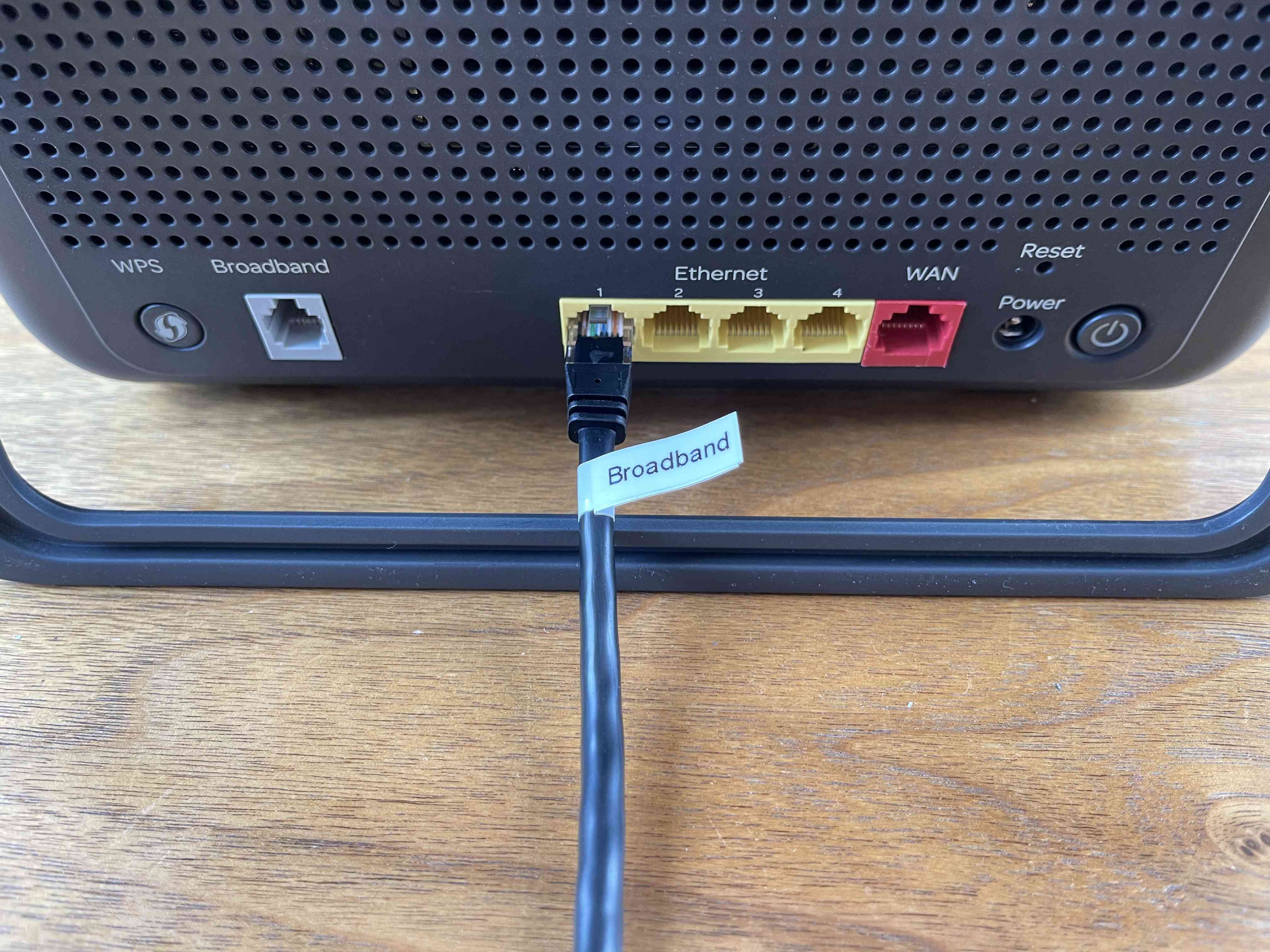

Step 5: Connect the other end of the Ethernet Cable (Black) with the Broadband label to your internet router or a network switch that has an internet connection.
Please check to see if the chosen port on your router or network switch has internet connectivity.
Step 6: Connect the power adapter of the W60B Base Station from Step 3 to the power socket.

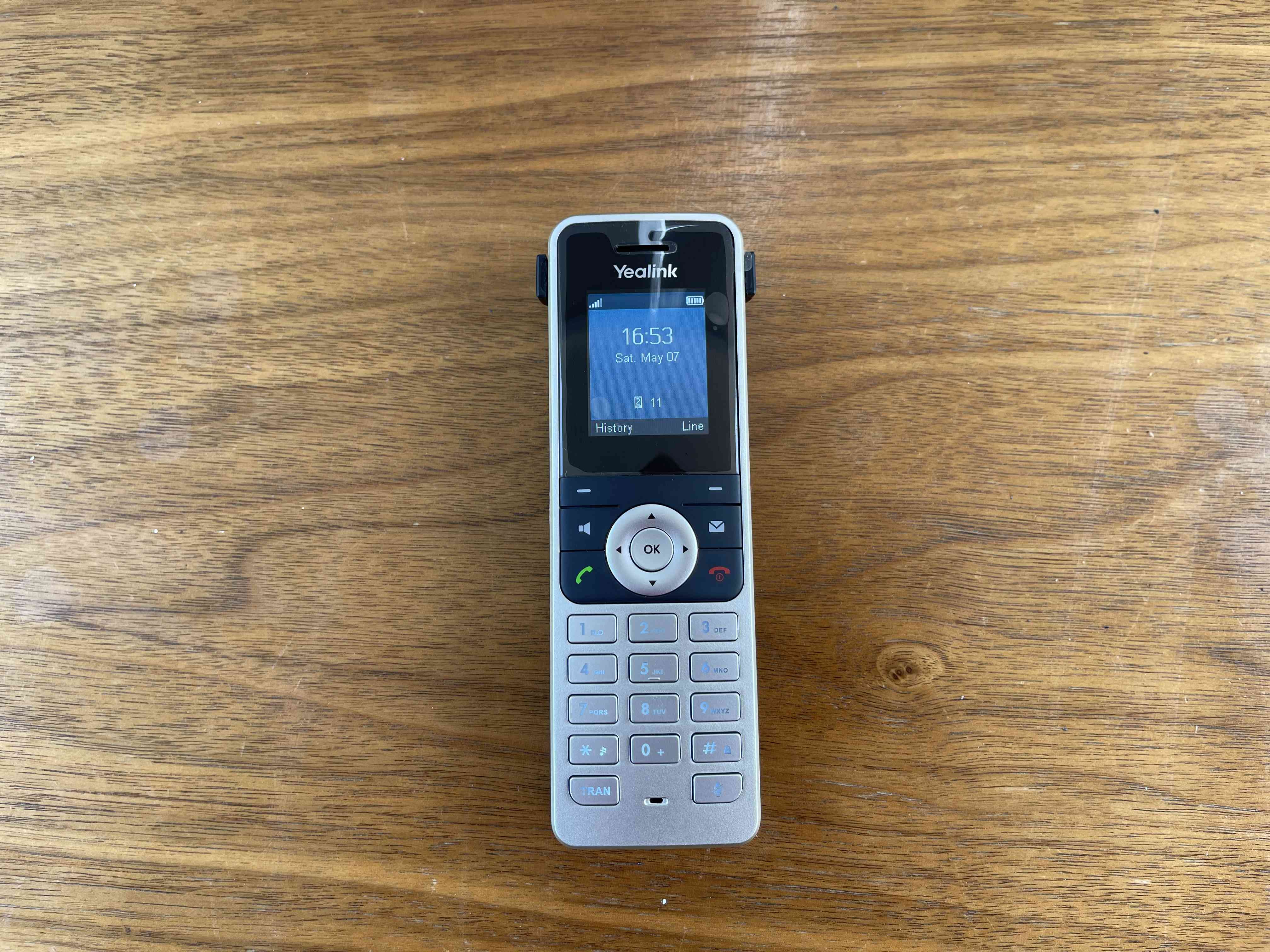

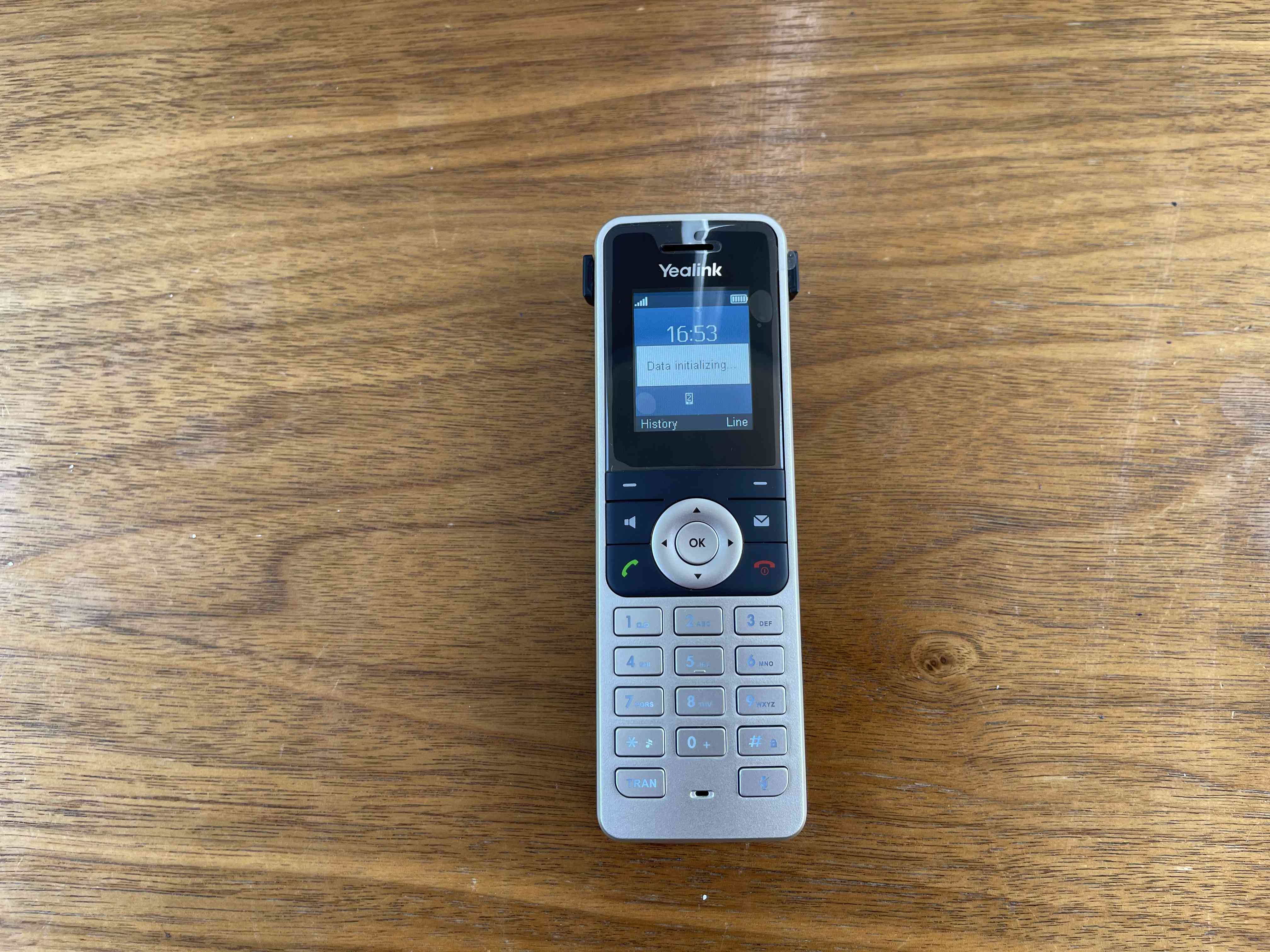

Step 7: For 2 seconds, press and hold the Red button on the W53H Handset. After a few seconds, the handset will turn on, and the extension number (for example, 11) will appear on the LCD.
Please don't hesitate to contact us if you have any additional issues with this tutorial by calling 0330 120 1515 or emailing support@londonict.com
